| Year/Model/Type | Size | Offset | Weight | Picture | Picture |
|---|---|---|---|---|---|
| 1990-1997 steel | 14" X 5.5" 4x100 | 45 mm | approx. 18 lbs., 8.2 kg. |
 |
 The center caps are worn and faded. |
| 1990-1993 7 spoke alloy wheel
Also used on 1991 BRG SE |
14" X 5.5" 4x100 | 45 mm | weight approx. 12.5 lbs., 5.7 kg. |
 |
 |
| 1992 Black/tan interior
1993 Black/red leather interior SE BBS wheel |
14" X 6" 4x100 | 45 mm | weight approx. 10.5 lbs. w/o caps, 4.8 kg.
Caps are approx. 0.3 lbs, 0.14 kg. Verified weights have been reported from 9.1 lbs. to 10.6 lbs (w/o center caps). There may actually be two wheel styles. The "mythical" 8.5 lbs. has not been verified. |
 |
 |
| Stamping from the back, weight verified at 10.4 lbs. From a 1993 SE |
 |
||||
| 1994-1997 7 spoke alloy (3 different spokes, hollow, semi-hollow, and solid) |
14" X 6" 4x100 | 45 mm | weight approx. 10.5-11.5 lbs., 4.8-5.2 kg. |
 |
 |
| 1994 Montego Blue M Edition 7 spoke polished alloy |
14" X 6" 4x100 | 45 mm | weight approx. 10.5 lbs., 4.8 kg. |
 |
 |
| 1995 Merlot Mica M Edition BBS Wheel | 15" X 6" 4x100 | 45 mm | weight approx. 12.0 lbs, 5.5 kg. |
 |
 |
| 1996 Starlight Mica M Edition and 1997 Twilight Blue STO alloy | 15" X 6" 4x100 | 45 mm | weight approx. 14.5 lbs., 6.6 kg. |
 |
 |
| 1997 Marina Green M Edition 6 spoke chrome plated alloy; sometimes referred to as polished alloy |
15" X 6" 4x100 | 45 mm | weight approx. 14.5 lbs., 6.6 kg. |
 |
 |
| 1999 10AE Sapphire Blue polished alloy | 15" X 6" 4x100 | 40 mm | weight approx. 13.1 lbs., 5.9 kg. |
 |
 |
| 1999-2000 14" alloy | 14" X 6" 4x100 | 40 mm | weight approx. 12.5 lbs., 5.7 kg. |
 |
 |
| 1999-2002 15" alloy | 15" X 6" 4x100 | 40 mm | weight approx. 13.1 lbs., 5.9 kg. |
 |
 |
| 2000 SE (Mohagony Mica) polished alloy | 15" X 6" 4x100 | 40 mm | weight approx. 13.1 lbs., 5.9 kg. |
 |
 |
| 2001-2003 alloy (and 2003 Shinsen) | 16" X 6.5" 4x100 | 40 mm | weight 15.8 lbs., 7.2 kg. |
 |
 |
| 2001 SE (BRG) polished alloy | 16" X 6.5" 4x100 | 40 mm | weight approx. 15.5 lbs., 7.0 kg. |
 |
 |

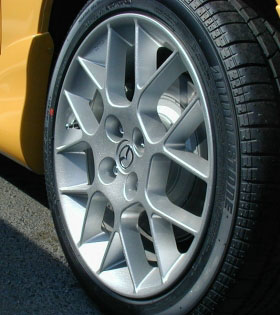

| 2002 SE (Blazing Yellow and Titanium) alloy | 16" X 6.5" 4x100 | 40 mm | weight approx. 18 lbs., 8.2 kg. |
 |
 |
| 2003 SE (Strato Blue Mica) alloy | 16" X 6.5" 4x100 | 40 mm | weight approx. 16.2 lbs., 7.3 kg. |
 |
 |
| 2004-2005 alloy Wheel | 16" x 6.5" 4x100 | 40 mm | weight approx. 15 lbs., 6.8 kg. |
 |
 |
| 2004 SE MAZDASPEED Racing Hart alloy | 17" x 7" 4x100 | 40 mm | weight approx. 17.1 lbs., 7.8 kg. |
 |
 |
| 2005 SE MAZDASPEED Racing Hart alloy | 17" x 7" 4x100 | 40 mm | weight approx. 18.4 lbs., 8.3 kg. Detail:  |
 |
 |
| 2005 17" alloy Third Gen. Special Edition (red) |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
 |
|
2006-2008 16" alloy 2006 Club Spec, Base, Touring Models |
16" x 6.5" 5x114.3 | 55 mm | weight approx. 15 lbs., 6.8 kg. |
 |
 |
|
2006-2008 17" alloy 2006 Sport Model, Grand Touring |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
 |
|
2008 17" alloy 2008 Special Edition |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
|
|
2009-2012 16" alloy 2009-2010 SV, Sport; 2011-2013 Sport |
16" x 6.5" 5x114.3 | 55 mm | weight approx. 15 lbs., 6.8 kg. |
 |
 |
|
2009-2012 17" alloy 2009, 2010, 2011, 2012 Touring, Grand Touring |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
 |
|

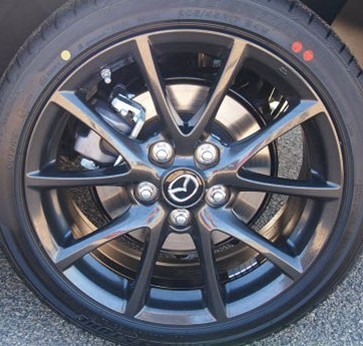

2012-2013 17" gun metal alloy 2012 Special Edition, 2013 Club |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
 |
|
2013 17" alloy 2013 Grand Touring |
17" x 7" 5x114.3 | 55 mm | weight approx. 17.0 lbs., 7.7 kg. |
 |
 |
